Endpoints

Analog Phones

Analog desk and wall phones — Mitel 6710 / 6730 V2 and Gigaset DESK 200 / 400 / 600. Connect to a PBX FXS port (e.g. SLAV16R) or an analog gateway; no IP infrastructure required.

• DESK200 — entry level, wall/desk, FXS connection, loud ringer, rugged; for warehouse and field
• DESK400 — mid-range, Caller ID, 100-contact directory, hold key, 2.5mm headset port
• DESK600 — premium, large LCD (LED backlight), 7 dual-assignment direct dial keys, 5-way navigation key, hands-free speakerphone, RJ-9 headset port, 100-contact directory, hearing aid compatible

Analog Gateways (FXS)

FXS gateways connecting analog devices (phones, fax, lift/door lines, modems) to SIP infrastructure — 16-port Mediatrix S716 and 2-port Mediatrix 4102S. T.38 fax, TLS/SRTP security, zero-touch provisioning.

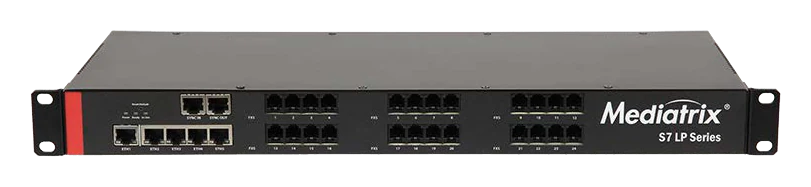

• Mediatrix S716 — 16 × FXS analog interface adapter (L30220-D600-A267); high port density
• Mediatrix 4102S — 2 × FXS ATA; compact for single analog points such as lifts/doors/fax
• Real-time T.38 fax + clear-channel pass-through; SIP over TLS, SRTP

Conference Phones

IP conference phones for meeting rooms — Poly Trio C60 and Mitel 6970 (expandable with Ext Mics). Registers to SIP infrastructure; 360° audio coverage for mid-size and large rooms.

• Poly Trio C60 — Microsoft Teams certified IP conference phone
• Mitel 6970 IP Conference Phone — with optional Ext Microphone (2-pack) kit and WLAN Adapter 2
• Promark: room acoustics assessment, SIP integration and commissioning

CP TDM Family — CP205T / CP405T

CP205T (entry) and CP405T (mid-range) TDM/digital endpoints for OpenScape 4000 and OpenScape Business. HiPath/CorNet protocol over UP0/E digital line — existing TDM cabling preserved; no IP infrastructure required. Not compatible with OpenScape Voice.

• CP205T — entry-level TDM digital: 2-line mono display (192×48 px), notification LED; 4 freely-programmable + LED keys (call log/directory/forwarding/redial), 5 fixed keys (3 with LED: hold/transfer/conference + settings/messages); 4-way navigator + OK; 3 audio keys (mute/speaker/headset with LED); DHSG/EHS headset; full-duplex hands-free; wall mounting kit included; UP0/E digital line interface
• CP405T — mid-range TDM digital: 3.7" (240×120 px) mono, white LED backlight, tiltable; notification LED (red/green/amber); 4 context-sensitive softkeys + LED, 2 fixed keys, 16 freely-programmable keys; 4-way navigator + OK; DHSG/EHS headset; full-duplex hands-free; UP0/E digital line interface; KM400 max 2 modules (2nd module requires local power supply)
• Line interface: UP0/E (TDM digital) — direct connection to OpenScape 4000 V7+ and OpenScape Business X3/X5/X8; existing digital cabling preserved

OpenScape Desk Phone CP Series G2

Four-model OpenScape Desk Phone CP G2 family — from entry-level CP110 to executive-class CP710. SIP and HFA (Cornet-IP) software, Plug & Play, SRTP/TLS security, Gigabit Ethernet, Blue Angel and ENERGY STAR certified. KM410/KM710 key module and CP10 WiFi accessory support. Compatible with OpenScape Voice, Business and OS4000 platforms.

• CP110 — entry level: 2.8" FSTN mono display (162×48 px, 3 lines), red LED signaling; 3 LCD-labeled freely-programmable keys (call log/forwarding/redial), 2 fixed function keys (settings/messages), 3-way navigator + OK; 3 audio keys (mute/speaker/headset), loud ringer; DHSG/EHS headset; desk/wall mount (2 angles)
• CP210 — ideal for UC/CTI support: 3.4" FSTN mono display (199×48 px, 3 lines), red/green/amber LED signaling; 4 LCD-labeled + LED freely-programmable keys (call log/directory/forwarding/redial), 5 fixed function keys (3 with LED: hold/transfer/conference + settings/messages), 4-way navigator + OK; USB interface; DHSG/EHS headset; CP10 WiFi support; desk/wall mount
• CP410 — flexible applications: 3.5" color TFT display (480×320 px, 5 lines, adjustable); red/green/amber LED; 5 context-sensitive + LED keys, 6 fixed function keys (4 with LED: out-of-office/hold/transfer/conference + settings/messages); 4-way navigator; USB interface; DHSG/EHS headset; up to 4× KM410 or 4× KM710 key modules; CP10 WiFi support; desk/wall mount

OpenStage IP Family — 15 / 40 / 60 (Legacy)

Legacy OpenStage desk phones — IP variants (15/40/60) via HFA/SIP, TDM variants (15T/40T/60T) via UP0/E digital line. For OS4000/OSBiz platforms. Optional Key Module (KM15, KM40/60) and Busy Lamp Field 40 accessories.

• OpenStage 15 / 40 / 60 — IP HFA/SIP models: entry, mid, top segment; Ethernet PoE, monochrome or color display (60)
• OpenStage 15T / 40T / 60T — TDM UP0/E models: same housing, digital line interface; for OpenScape 4000 and OpenScape Business
• Key Module 15 (KM15) — 18-LED side module for OpenStage 15; Key Module 40/60 (KM40-60) — 12+12 key expansion for OpenStage 40/60

OpenScape WLAN Phone WL4 — Wi-Fi SIP Phone & WSG

WL4 is not DECT — it is an enterprise wireless IP phone operating via SIP over Wi-Fi access points. Connects to 802.11 a/b/g/n/ac WLAN infrastructure, registers to PBX via SIP. WL4 Plus: man-down + no-movement alarm. WSG (Wireless Service Gateway) server provides centralized management, messaging and OScAR integration. For healthcare, retail, manufacturing and campus use.

• WL4 vs DECT difference: WL4 operates over existing WLAN (Wi-Fi) infrastructure — no separate DECT base station needed; registers directly to PBX via SIP; DECT handsets connect via BSIP2 base station, WL4 connects via access point
• IEEE 802.11 a/b/g/n/ac support (2.4GHz and 5GHz), WLAN security: WPA2-PSK, PEAP-MSCHAPv2, EAP-TLS, AES-CCMP (802.11i/w), fast roaming: 802.11r/k, PMKSA caching, CCKM; IP44 enclosure
• Protocols: SIP/RTP, SRTP/TLS (encrypted voice), TCP/IP, DHCP, DNS, SNMP; voice codecs: Opus Wideband, G.711 A/μ-law, G.729, G.722; 4 network profiles (auto/manual selection)

OpenStage TDM Family — 15T / 40T / 60T (Legacy)

Legacy OpenStage TDM desk phones — connect to OS4000 and OSBiz PBXs over UP0/E digital lines. No IP infrastructure required; existing digital cabling preserved. Compatible with KM15 / KM40-60 accessories.

• OpenStage 15T / 40T / 60T — entry, mid and top TDM models; UP0/E digital line interface
• For OpenScape 4000 and OpenScape Business PBXs; not compatible with OpenScape Voice
• Same housing as IP variants — compatible with KM15 (15T) and KM40-60 (40T/60T) key modules

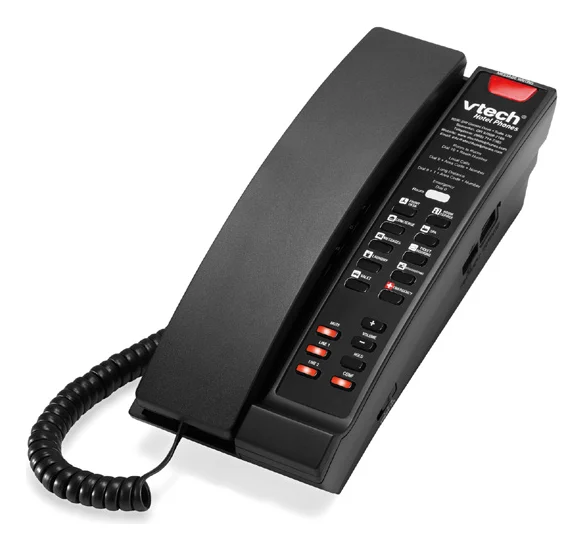

VTech S2211-L — Hospitality SIP Corded Petite Phone (1-Line)

Compact SIP corded phone designed for hotel rooms — antibacterial plastic (inhibits 99.9% of bacteria growth), USB charging port (guest smartphone charging), customizable faceplate (hotel brand + dialing instructions), PoE-powered. Petite Phone® — smaller than standard guest room phone.
