OpenStage 15 HFA/SIP — Entry-level IP Desk Phone
Full-featured entry-level IP desk phone — 2-line monochrome display, 8 LED programmable keys and AudioPresence HD voice quality in an ergonomic speakerphone for office users. Available in HFA (Unify) and open SIP variants, with optional Gigabit Ethernet (15G).
From the same family
Specifications
- Protocol
- HFA (Unify CorNet-IP) or SIP (RFC 3261)
- Display
- 2 lines, 205 × 41 pixels, monochrome
- Tiltable display
- No (fixed 30°)
- Backlight
- No
- Programmable keys
- 8 (red LED)
- Fixed function keys
- 3 (red LED)
- Navigation
- 3 navigation keys
- Hands-free
- Full-duplex + AudioPresence HD + AEC
- Codec
- G.711, G.722, G.729AB
- Headset jack
- No
- Bluetooth
- No
- USB
- No
- Ethernet
- 15: 10/100 Base-T • 15G: Gigabit
- PoE class
- 15: Class 1 • 15G: Class 2 (802.3af)
- Power supply (PSU)
- Optional (country variant)
- Expansion
- Max. 1 × OpenStage Key Module 15 (18 keys)
- Wall mounting
- Yes (ice blue/lava kit)
- Dimensions (H × W × D)
- 70 × 240 × 221 mm
- Weight
- 0.783 kg
- Color
- Ice blue or lava
- Annual energy consumption
- 22.8 kWh (RAL-UZ 150)
- Security
- IEEE 802.1x, SRTP, TLS, X.509 V3, HTTPS
- Operating temperature
- +5 °C to +40 °C
Key features
- 2-line monochrome graphic display (205 × 41 pixels, fixed 30° viewing angle, no backlight).
- 8 programmable keys (red LED) — usable as line keys or speed-dial/feature keys.
- 3 fixed function keys (red LED) + 3 navigation keys + volume +/− keys.
- Full-duplex hands-free + AudioPresence HD (G.722 HD voice, advanced noise/echo suppression).
- Codecs: G.711, G.722, G.729AB — high voice quality on both LAN and WAN.
- Integrated Ethernet switch — 15: 10/100 Base-T (PoE Class 1) or 15G: Gigabit (PoE Class 2).
- PoE 802.3af power or optional external power supply.
- Expansion via OpenStage Key Module 15 — max. 1 module (18 extra LED keys).
- Wall-mountable; ice blue or lava colors.
- HFA platforms: OpenScape Business, OpenScape 4000, HiPath 3000/4000. SIP platforms: OpenScape Voice, Asterisk.
- Layer 2 security (IEEE 802.1x), SRTP payload encryption, TLS signaling, X.509 V3 certificates.
Typical applications
Manufacturing/workshop environment — simple display + 8 line keys for voice without heavy call traffic.
Reception front desk — quick line keys + speakerphone; one-to-one replacement of legacy OptiPoint phones.
Education facility cabin phone — classroom and lab standard usage.
Hotel room phone (HFA mode) — basic voice, routing keys + emergency call; PoE single-cable powering.
Logistics / warehouse staff — wall-mounted, AudioPresence HD for clear talk in noisy environments.
Related Solutions
Related Products
OpenStage Busy Lamp Field 40 — 90-key Switchboard Module
Switchboard/operator module connecting to OpenStage 40 and OpenStage 60 phones, with 90 freely programmable LED keys. Paper-insert labeling; supported on HFA (IP) and TDM (OpenStage 30T/40T/60T).
Details
OpenStage Key Module 15 — DSS Key Expansion Module
DSS expansion module for OpenStage 15 (IP) and OpenStage 15T / 30T / 40T (TDM) phones, adding 18 LED-equipped freely programmable keys. Usable as line, speed-dial or feature keys; paper-insert labeling.
Details
OpenStage Key Module 40/60 — DSS Expansion Module with Graphic Labels
Expansion module for OpenStage 40 (IP/T) and OpenStage 60 (IP/T) phones with 12 programmable keys in 2 layers (effective 24) and a large graphical labeling display. Up to 2 modules per phone — 48 effective keys total.
Details
OpenStage 40 HFA/SIP — Office IP Desk Phone
IP desk phone for office and call-center users with a tiltable 6-line backlit graphic display, 6 sensor-key programmable keys and a 5-way navigator. Available in HFA (Unify) and SIP variants; expandable with KM40/60 and BLF40.
Details

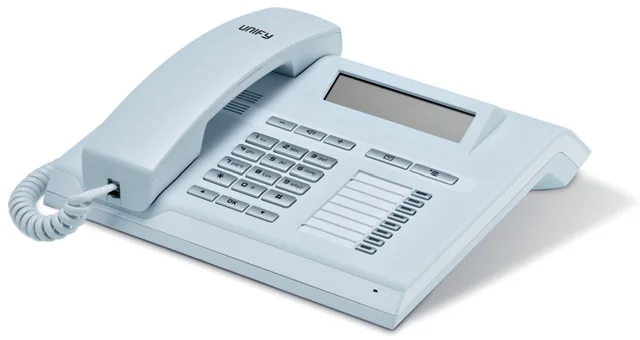

OpenStage 15 T — Entry-level Digital Desk Phone
