Transmission Systems
SDH/MSTP, MPLS-TP and OTN transmission platforms — Huawei OptiX OSN and Infinera 7090 series.
2 solution families · 0 individual products
Solution Families
Huawei OptiX OSN 500 / OSN 1500 — MSTP & Hybrid Transport
OSN 500 (1U metro CPE, MPLS-TP + SDH/PDH/Ethernet) and OSN 1500 (MSTP/SDH line system, STM-1/4/16 + Ethernet). Both platforms carry TDM and packet services on the same infrastructure. 99.999% availability and 50ms protection for energy, railway, public and metro network applications.

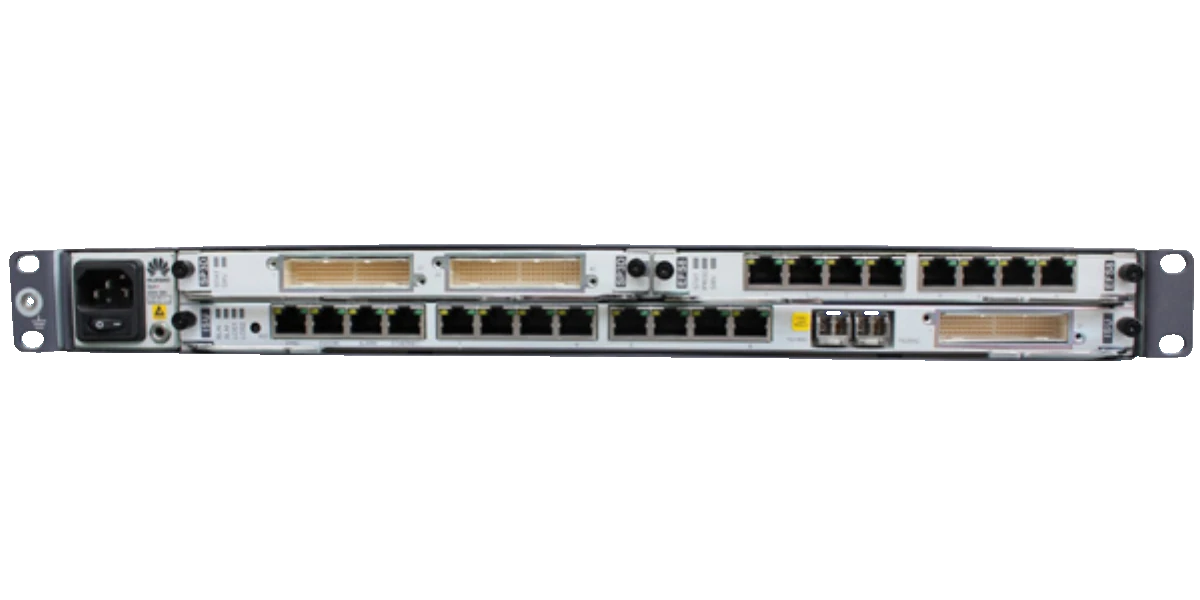

- Huawei OptiX OSN 500 — metro access CPE (1U): MPLS-TP-based multi-service access — PDH (E1/E3, T1/T3), SDH (STM-1/4), Ethernet (FE/GE), CES (ATM/IMA E1, ch STM-1) on the same platform; 3 service slots; 7.2 Gbps packet + 21.25 Gbps TDM switching; 35W typical power; 65°C operating temperature; AC or 48/60V DC power; 19/23-inch rack, wall or desktop mounting; TNH1ISUA01 120 Ohm adapter for E1 connectivity
- Huawei OptiX OSN 1500 — MSTP/SDH line system: SSQ2CXL16 cross-connect board (STM-16 capacity, 2x redundant), SSN1D12S 12×STM-1 optical tributary board (2x), SSN1SLQ4A STM-4 optical line board, SSN2PQ1A Ethernet processing board (2x), AUX auxiliary interface board, EOW engineering order wire, R1EFT4 4×FE Ethernet tributary board, PIUB power interface board (2x); SDH/MSTP protection: 2-fiber MS-SP Ring, 1+1/1:n MSP, SNCP, E1 1+1
- SSN1SLD16 board (optional) — STM-16 (2.5 Gbps) optical line card: for high-capacity SDH aggregation on OSN 1500; ring and linear topology support; MS-SPRing and SNCP protection
Infinera 7090-100 CEM — Compact Edge Multiservice Platform
The Infinera 7090-100 CEM is a compact edge transport platform combining E1/T1 + GE + STM-1 + 10G SFP+ interfaces in a single chassis. SDH/SONET, Ethernet and transport services on the same platform; redundant XCS1-1 cross-connect, DC power protection and Transcend NMS management. For telecom operators and enterprise WAN/metro networks.
- Chassis and platform: 7090-100 CEM chassis — 19-inch and 21-inch rack compatible; XCS1-1 cross-connect/system controller card (2x, fully redundant); fan assembly + NM (Network Management) + ALM (alarm) module; DC power module with protection (2x redundant); 7090 installation kit; 7090-100 CEM core license
- Interface cards: 16×E1/T1 tributary card — for E1/T1 circuits, 120 Ohm, connected via RJ-45 cable (CABLE ASSY 2×E1 RJ-45 3m); 6×GE + 2×GE/STM-1 combo card — 6 Gigabit Ethernet + 2 GE/STM-1 dual-mode interfaces; 2 cards per interface type in typical configuration
- SFP/SFP+ optical modules: 10G SFP+ 10km (1310nm, SM) — metro/intercity links; 10G SFP+ 40km (1550nm, SM) — long-haul links; 10G SFP+ 80km (1550nm, SM) — extended long-haul; 1.25G SFP 100m Cat5 — local/short-range GE; 1.25G SFP 10km (1310nm) — standard GE metro links
